Tech Suspension E39 Fork by Formula
$1,450.00

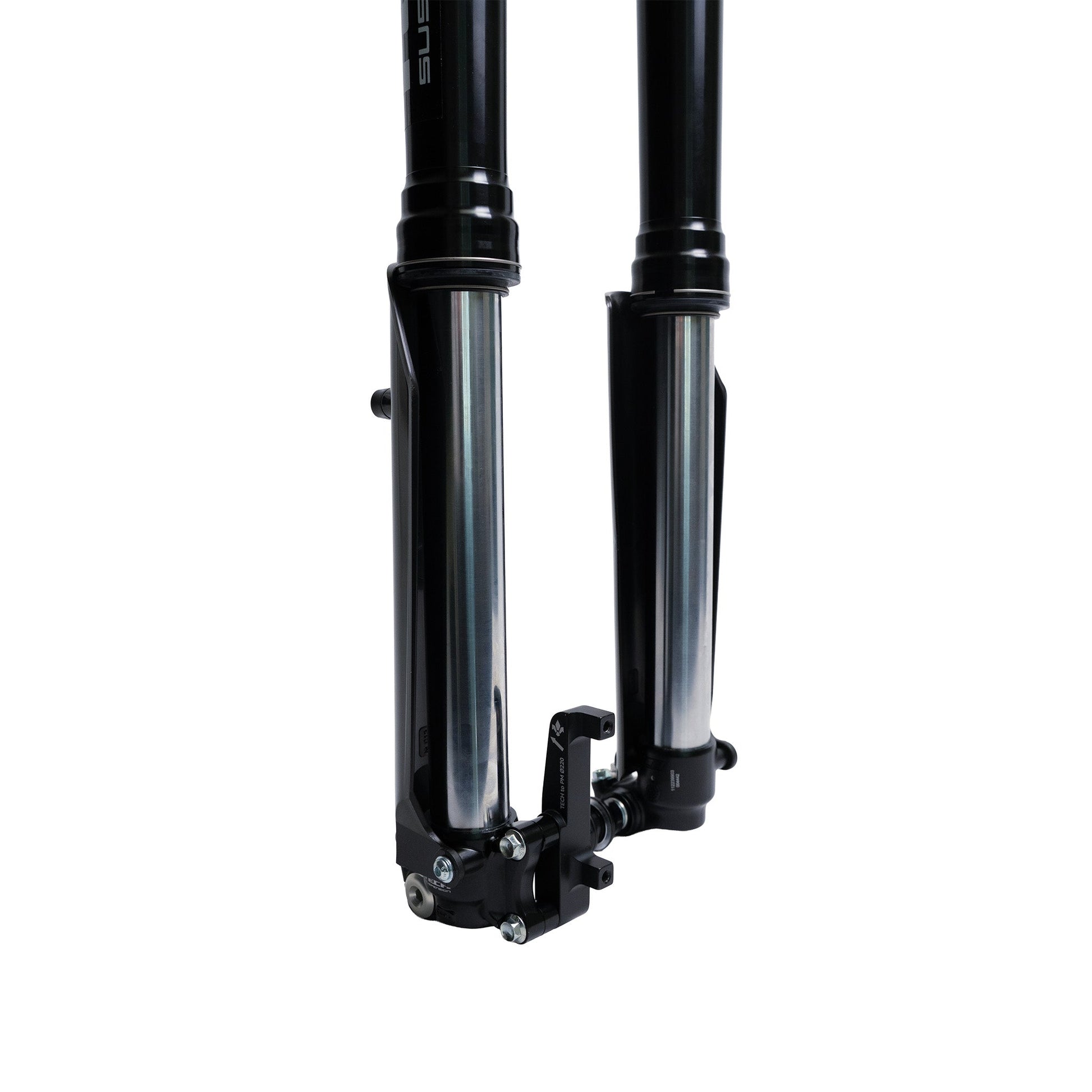

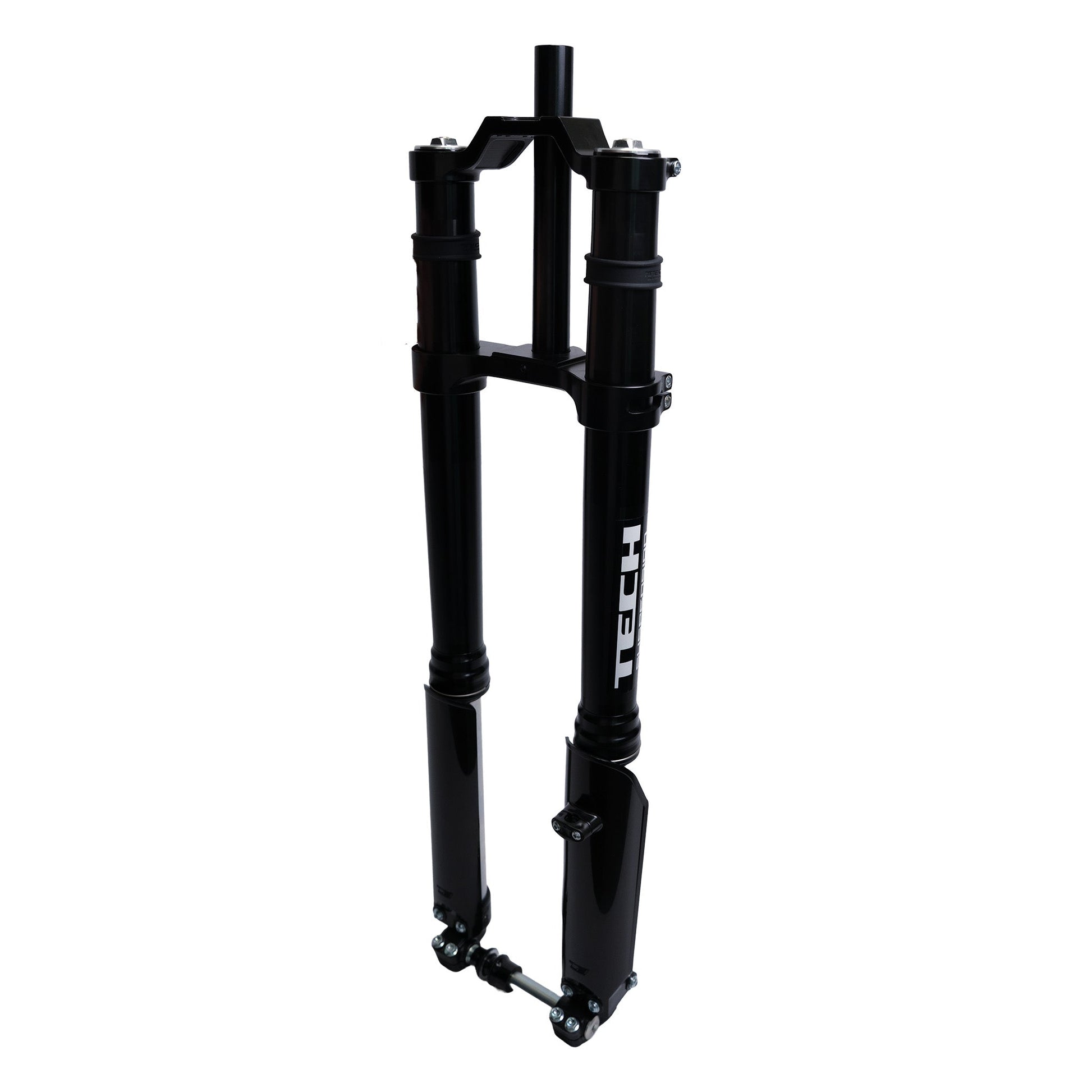

Description Formula Tech Suspension E39 Fork
Engineered to enhance the performance of lightweight E-Motos.
MOTORCYCLE DESIGN
39mm stanchions and an upside-down, dual-crown design provide support and precise steering without flexing under heavy impacts.
Dual coil springs and hydraulic dampers designed and tuned for the weight and speed of lightweight E-Motos.
PERFORMANCE & ADJUSTABILITY
230mm travel with easy-to-use high/low-speed compression and rebound adjustments.
Factory-tuned for average weight riders of 60-80kgs and all-round riding using a medium spring rate.
Five different spring combinations are available to cater for all rider weights and types of riding.
COMPATIBILITY

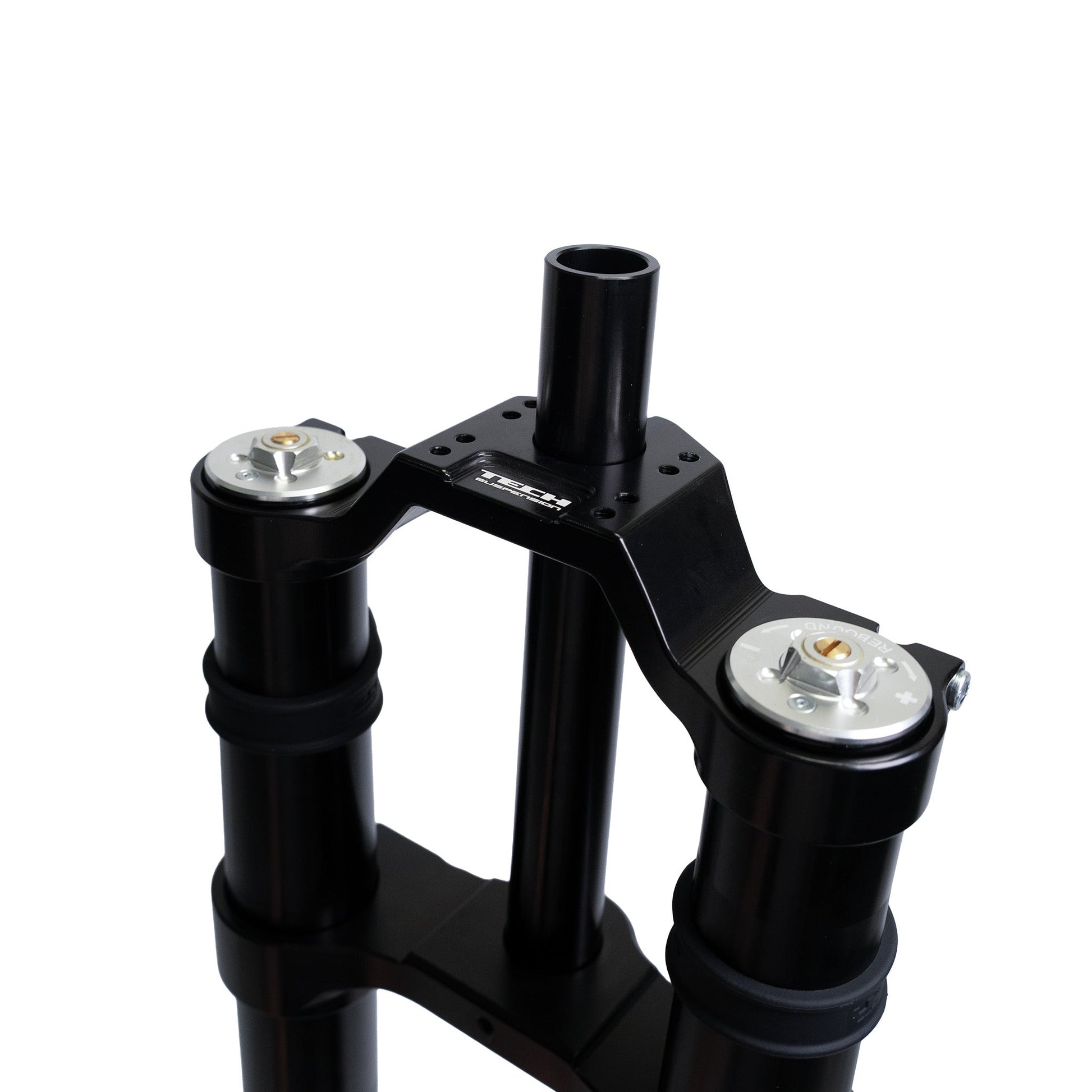

Includes triple clamps, axle, and wheel spacer for direct installation on all lightweight E-Moto brands*.
Standard drop crown supports 21″ wheels.
PM caliper mount supports 220mm brake discs.
DURABILITY
Anodized aluminum outer tubes and hard-chrome-treated steel stanchions resist wear in demanding conditions.
Low-friction bushings, heavy-duty seals, and premium oil ensure consistent performance.
Plastic fork guards included for stanchion protection.
Tech Specs

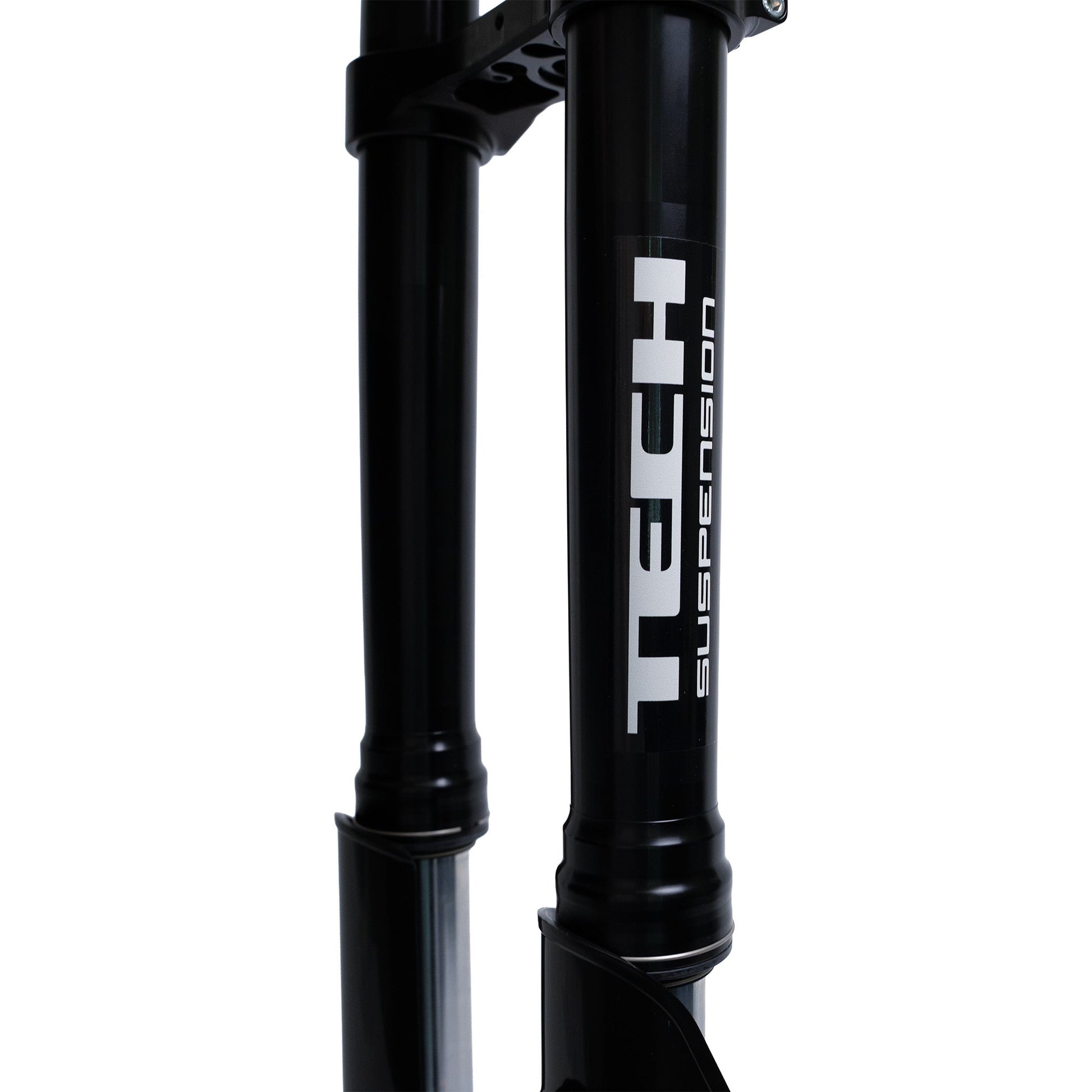

Stanchion Tubes: 39mm diameter Hard Plated Chromoly Steel
External adjustment: Rebound + compression
Overall Length: 770 mm
Axle to Crown: +/- 635mm
Stroke: 230mm
Weight: 14.8lbs
Stanchion tubes: titanium black coating
Compatible with Surron Light Bee X/S, Talaria Sting MX3/4, and E-Ride Pro S/SS 2.0 models.
